Versatility of die cutting: Making spacers, flexible insulators, heat shields, sound filters, mesh, reflective plastics, and anti-vandalism fascia

Die cutting is a versatile manufacturing technique that employs sharp dies to cut desired shapes and components from a variety of materials, including paper, plastic, and metal. The process can vary based on the material and specific requirements.

In this article, we will explore different types of die-cut plastics, their features, variations, and applications, demonstrating how die-cutting is utilized to provide manufacturing solutions.

die-cut-plastics-guide

All you need to know about Die-cut plastics

The most popular die-cut plastics used for various applications are as follows.

  1. Spacers
  2. Flexible Insulators
  3. Heat Shields
  4. Sound Filters
  5. Mesh
  6. Reflective Plastics
  7. Anti-vandalism Fascia

The die-cutting process used to manufacture these plastics is nearly identical, with slight variations depending on the specific material and its properties. Here’s a simplified overview of the general process:

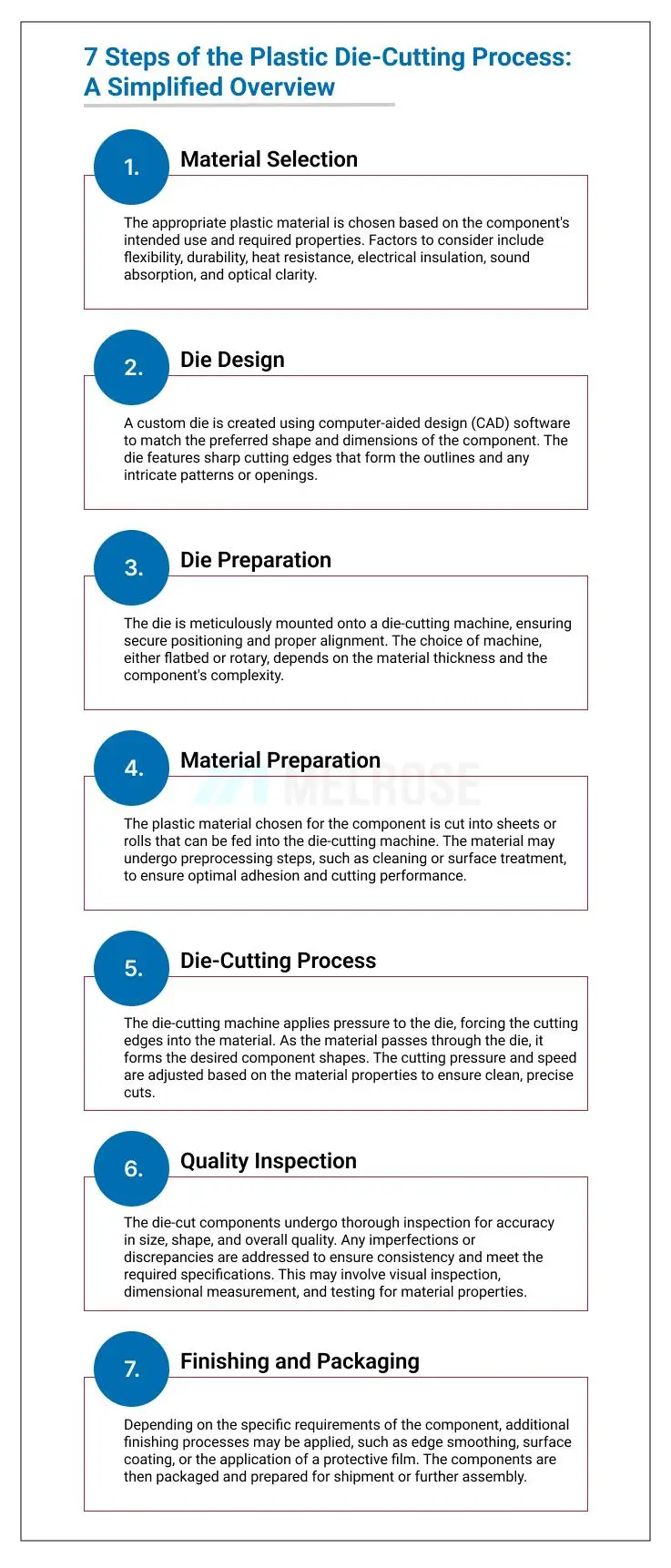

Plastic-die-cutting-process

Now, let’s explore each of these die-cut plastics one by one.

Spacers:

Spacers are small, flat materials that ensure maintaining a proper distance between two or more components. These components are either cylindrical or rectangular shapes and are made from various materials to meet some of the key functions of applications.

Key functions of spacers:

  • Mechanical Accuracy: Spacers prevent components from rubbing against each other, reducing wear and tear, thereby extending the lifespan and providing a long-term solution.
  • Structural Integrity: Consistent spacing ensures even load distribution, preventing stress concentrations and potential failures – contributing to the overall stability and rigidity of the structure.
  • Electrical Performance: In the case of electrical components, spacers provide proper electrical isolation and signal transmission. Improper spacing can lead to short circuits or crosstalk, causing malfunctions and potential damage to the components.
  • Thermal Management: Spacers allow for proper airflow and heat dissipation. Overheating can lead to component failure and reduced performance. Accurate spacing ensures efficient heat transfer away from the source.
  • Optical Performance: In optical systems, maintaining consistent spacing between lenses, mirrors, and other optical elements is crucial for achieving proper focus, image quality, and light transmission. Improper spacing can cause image distortion, blurriness, and reduced light intensity.
  • Aesthetic Appeal: Spacers contribute to a clean, aesthetically pleasing appearance. Inconsistencies can result in an amateur design, leading to unhappy customers.

Applications of Spacers:

Spacers find wide-ranging applications across various industries, including:

  1. Electronics: Used in electronic assemblies to maintain proper spacing between circuit boards, components, and heat sinks.
  2. Mechanical Assemblies: Maintain alignment, provide structural support, and prevent interference between moving parts.
  3. Optical Systems: Crucial in optical systems, ensuring precise alignment of lenses, mirrors, and other optical elements.
  4. Automotive Industry: Ideal for various automotive components, such as engine mounts, suspension systems, and body panels.
  5. Aerospace Industry: Due to their lightweight and high-strength properties, spacers are essential in aerospace applications.
  6. Medical Devices: Perfect for use in medical devices to maintain proper spacing between components and ensure accurate functioning.

In addition to plastics, spacers can also be made using rubber, metal, or other composite materials.

Flexible insulators

Flexible insulators protect electrical components from damage caused by electrical shock or static discharge. A thin sheet of plastic or rubber, coated with a conductive material is used to make these insulators. Often used in applications such as power cords or appliances that require to be risk-free from electrical damages.

Key Functions of Flexible Insulators:

  1. Electrical Insulation: Prevents the flow of electrical current, protecting components from short circuits and electrical shock hazards.
  2. Mechanical Protection: Provides a barrier between components, preventing abrasion, wear, and damage caused by vibration or movement.
  3. Thermal Insulation: Flexible insulators can help retain heat or protect components from excessive heat, depending on the application.
  4. Sealing and Gasketing: Used to seal gaps and prevent leaks in enclosures, housings, or electrical connectors.
  5. Noise Reduction: Effectively dampens vibrations and reduces noise transmission by converting mechanical energy into thermal energy.

Applications of Flexible Insulators:

Flexible insulators are widely used in various applications, including:

  • Electronics: Essential components in electronic devices, protect circuit boards, wires, and other electrical components from short circuits and damage.
  • Electrical Appliances: Provide insulation and protect components from heat and electrical hazards in electrical appliances, such as motors
  • Automotive Industry: Prevent short circuits and provide protection from harsh environmental conditions in automotive electrical systems, sensors, and wiring.
  • Aerospace: Idea for aerospace applications due to their lightweight, flexibility, and ability to withstand extreme temperatures and vibrations.
  • Medical Devices: Provide electrical insulation, protect against fluids and contaminants, and enhance patient safety.

Heat shields:

Heat shields safeguard devices from damage caused by excessive heat. Made from plastic materials, heat shields protect sensitive components inside equipment and ensure proper functioning. These shields use various mechanisms to dissipate and reflect heat, thereby guarding the components from overheating.

Protecting components from excessive heat: The role of heat shields

Highly Reflective Materials: Materials like aluminum or stainless steel are typically employed in heat shields to effectively deflect a significant portion of incoming radiant heat away from the protected component. This reflection property minimizes the amount of heat absorbed, protecting the component from overheating.

Air Gaps and Non-Convective Materials: Heat shields disrupt the natural convection process by creating air gaps or employing non-convective materials like ceramics. This hinders the movement of heated gas or liquid molecules, reducing convective heat transfer and protecting sensitive components.

Low Thermal Conductivity Materials: Heat shields often use materials with low thermal conductivity, such as ceramics or polymers, to minimize heat transfer by conduction. This slows down the flow of heat from a hotter region to a cooler region through direct contact, further safeguarding the components from excessive temperatures.

Applications of Heat Shields

Heat shields are critical components in a wide range of applications:

  • Aerospace: During reentry into Earth’s atmosphere, spacecraft experience extreme temperatures due to air friction. Heat shields are essential for protecting these spacecraft from this intense heat.
  • Automotive Industry: In automotive applications, heat shields protect components from the heat generated by engines, exhaust systems, and other hot components, ensuring the vehicle’s proper operation and preventing damage.
  • Electronics: Plays a vital role in electronic devices by safeguarding sensitive components from overheating ensuring reliable operation and extending the lifespan of these components.
  • Industrial Applications: Employed in industrial machinery and equipment to protect workers from heat sources, improving worker safety and preventing damage to nearby components.
  • Building Construction: In building construction, heat shields are utilized to protect roofs, walls, and other structures from excessive heat, especially from solar radiation, ensuring the structural integrity and comfort of buildings.

Sound filters:

Sound filters reduce the amount of noise transmitted from one area to another. Plastic sound filters, made with die-cutting techniques, offer unique benefits over traditional foam or fiberglass filters.

The non-porous nature of these filters makes them more resistant to moisture, dust, and other contaminants, thereby minimizing the maintenance requirements. Also, custom filters made by die-cutting enable them to target specific noise frequencies and achieve desired acoustic properties.

Features of plastic sound filters:

  1. Moisture Resistance: Plastic sound filters are not susceptible to moisture absorption, unlike foam filters, which can degrade and lose their effectiveness in humid environments.
  2. Dust Resistance: Less prone to dust accumulation compared to fiberglass filters, which can trap dust particles and affect sound quality.
  3. Durability: Plastic sound filters are generally more durable than foam or fiberglass filters, withstanding wear and tear better, especially in harsh environments.
  4. Precise Shaping: Die-cutting techniques allow for precise shaping and patterning of plastic filters, enabling the creation of complex shapes and intricate patterns.
  5. Frequency Targeting: The specific shaping of plastic filters allows for targeted noise reduction, focusing on specific frequency ranges that contribute to unwanted noise.

Applications of Plastic Sound Filters:

Plastic sound filters are increasingly used in various applications due to their unique properties:

  1. Automotive Industry: In automotive applications, these filters effectively mitigate noise transmission from engines, exhaust systems, and various components. This, in turn, enhances cabin comfort and contributes to reduced overall noise pollution.
  2. HVAC Systems: Within HVAC systems, they play a vital role in minimizing noise generated by fans, ducts, and associated components. This results in a quieter indoor environment.
  3. Industrial Applications: In the industrial sector, they are instrumental in diminishing noise levels from machinery and equipment, ensuring the safety of workers’ hearing.
  4. Audio Equipment: Widely adopted in audio equipment, they serve to control unwanted noise and elevate sound quality, especially in subwoofers and speaker enclosures.
  5. Architectural Acoustics: In architectural acoustics, these filters are applied to regulate sound transmission and reverberation within buildings, creating a more acoustically balanced environment.

Meshes:

Plastic meshes have emerged as versatile and effective solutions for applications that require filtration, separation, or protection. Comprising interconnected plastic filaments or wires, these materials offer a range of benefits, making them suitable for a wide variety of purposes.

Features of Plastic Meshes

Plastic meshes offer several advantages over traditional mesh materials, such as metal or natural fibers:

  1. Lightweight: When weight is a critical factor, plastic meshes prove advantageous as they are notably lighter compared to metal or natural fiber meshes.
  2. Corrosion Resistance: Resisting corrosion from chemicals, moisture, and UV radiation, these meshes extend their lifespan and reduce maintenance requirements.
  3. Flexibility: Their ability to be easily shaped and molded into intricate designs allows them to adapt to various applications and complex geometries.
  4. Cost-Effectiveness: Often, plastic meshes offer a more budget-friendly alternative to traditional mesh materials, making them a viable choice for diverse applications.
  5. Variety of Options: With a wide array of types, materials, and pore sizes available, these meshes provide the perfect solution for specific applications and requirements.

Plastic meshes come in different types with unique properties and applications like monofilament, multifilament, and woven meshes.

Applications of Plastic Meshes

Plastic meshes play a crucial role in a diverse range of applications:

  1. Filtration: Widely used in filtration systems to remove unwanted particles from liquids or gasses. They are employed in air filters, water filters, and fuel filters to ensure the purity of these substances.
  2. Separation: In industrial processes, plastic meshes are used to separate materials of different sizes or characteristics. They are commonly used in sieving and sifting applications, as well as in the separation of solids from liquids in industrial processes.
  3. Protection: Provide a protective barrier against insects, particulates, and debris. They are used in window screens, insect screens, and protective covers for machinery and equipment.
  4. Reinforcement: Plastic meshes are used to reinforce materials and structures, such as composites, concrete, and asphalt. They provide additional strength and stability to these materials.

Reflective plastics:

Reflective plastics are a type of plastic material treated with a reflective coating. This coating enables the plastic to reflect light, making it valuable for a range of safety applications, including traffic cones and reflective tape. Additionally, they find use in decorative applications, such as mirrors and ornaments.

Advantages of Reflective Plastics

Reflective plastics offer several advantages over traditional materials for visibility enhancement:

  1. High Reflectivity: Reflective plastics can redirect incident light back toward its source, making objects and surfaces highly visible in low-light conditions.
  2. Durability: Resistant to weathering, abrasion, and chemicals, ensuring that their reflectivity remains effective over time.
  3. Versatility: Reflective plastics can be cut, shaped, and formed into various configurations, making them suitable for a wide range of applications.
  4. Cost-Effectiveness: Cost-effective than traditional lighting solutions for visibility enhancement.
  5. Environmental Friendliness: Some types of reflective plastics are made from recycled materials, reducing their environmental impact.

Types of Reflective Plastics

Reflective plastics come in various types, each with unique properties and applications:

  1. Sheeting: A versatile material that can be cut, shaped, and formed into various configurations. It is commonly used in traffic signs, safety vests, and reflective tape.
  2. Film: Reflective plastic film is a thin and flexible material that can be adhered to surfaces to enhance their visibility. It is often used in reflective stickers, labels, and markings.
  3. Fabric: A lightweight and durable material that can be used for a variety of applications, such as safety apparel, reflective tents, and warning flags.

Applications of Reflective Plastics

Reflective plastics are widely used in various applications to enhance visibility and safety:

  1. Traffic Safety: Ideal for safety apparel, such as high-visibility jackets and reflective armbands, making traveling through roads safer, especially in low-light conditions or at night.
  2. Product Marking: Enhance the visibility of products and objects, such as warning signs, safety equipment, and outdoor furniture, ensuring that they are easily seen and avoided in the dark.
  3. Emergency Response: Reflective plastics are used in emergency response equipment, such as reflective vests, cones, and markings, to aid in visibility and safety during emergencies.

Anti-vandalism Fascia:

Anti-vandalism fascia is a type of protective covering used to protect surfaces from damage caused by vandalism (graffiti, scratches, and dents). Made from tough and scratch-resistant plastics, they are often used on ATMs or vending machines.

Properties of Anti-Vandalism Fascia

Anti-vandalism fascia possesses several key properties that make it effective in preventing vandalism:

  1. Impact Resistance: The material used for anti-vandalism fascia is specifically chosen for its ability to withstand forceful impacts and blows, making it difficult to damage or break.
  2. Scratch Resistance: The surface of anti-vandalism fascia is treated to be scratch-resistant, preventing damage from graffiti or other sharp objects.
  3. Graffiti Resistance: Anti-vandalism fascia is often coated with anti-graffiti coatings that make it difficult for graffiti paint to adhere to the surface, allowing for easy removal.
  4. Corrosion Resistance: Materials like stainless steel and aluminum are inherently corrosion-resistant, preventing damage from moisture and weathering.

Applications of Anti-Vandalism Fascia

Anti-vandalism fascia is widely used in various applications to protect building exteriors:

  1. Commercial Buildings: Anti-vandalism fascia is commonly used in commercial buildings, such as storefronts, office buildings, and shopping centers, to protect their exteriors from vandalism and maintain their professional appearance.
  2. Schools: Schools are particularly vulnerable to vandalism, and anti-vandalism fascia is used to protect school buildings, playgrounds, and other outdoor areas from damage.
  3. Public Buildings: Anti-vandalism fascia is used to protect public buildings, such as libraries, museums, and government offices, from vandalism and maintain their aesthetic appeal.
  4. Transportation Facilities: Anti-vandalism fascia is used in transportation facilities, such as bus stops, train stations, and airports, to protect their exteriors from vandalism and maintain a safe and inviting environment.

Here is a list of common plastic materials used for die-cut plastic manufacturing. The below materials apply to all the die-cut plastics listed in this article.

  1. High-Impact Polystyrene (HIPS): HIPS is a versatile and cost-effective plastic known for its impact resistance, rigidity, and dimensional stability. It is often used in sound filters that require durability and resistance to physical impact.
  2. Acrylonitrile Butadiene Styrene (ABS): ABS is a strong and durable plastic with excellent heat resistance and flame retardant properties. It is suitable for sound filters in applications where heat and fire safety are concerns.
  3. Polypropylene (PP): PP is a lightweight and flexible plastic with good chemical resistance and toughness. It is often used in sound filters that require flexibility and resistance to chemicals.
  4. Polyurethane (PU): PU is a versatile plastic with customizable properties, ranging from rigid to flexible. It is often used in sound filters where both noise reduction and vibration damping are desired.
  5. Thermoplastic Elastomers (TPEs): TPEs are a class of polymers that combine the properties of both plastics and rubbers. They offer flexibility, resilience, and good sound absorption, making them suitable for sound filters that require vibration isolation and noise reduction.

Die Cutting: Advancing Manufacturing Excellence

From spacers with precise dimensions and an optimal fit to flexible insulators providing effective electrical protection, die-cutting has proven to be a versatile and reliable technique. Its impact extends to the fabrication of heat shields, safeguarding sensitive components from excessive heat, sound filters that control sound transmission and enhance acoustic environments, and mesh providing filtration, separation, and protection.

Die-cutting also plays a crucial role in producing reflective plastics that enhance visibility and prevent accidents, as well as anti-vandalism fascia protecting building exteriors. Its applications extend beyond these examples, encompassing a vast array of industries and products.

As technology advances, die-cutting techniques continue to evolve, offering even greater precision, efficiency, and material compatibility. This transformative technique is poised to shape the future of product design and manufacturing, ensuring the creation of high-quality, innovative products that meet the ever-increasing demands of modern society.
